DiscovererStreamInfo - Base class for information concerning a media stream. More...

#include <gstreamermm/discovererinfo.h>

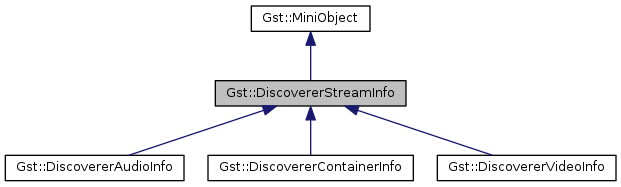

Inheritance diagram for Gst::DiscovererStreamInfo:

[legend]

Public Member Functions
void	reference () const
	Increment the reference count for this object. More...

void	unreference () const
	Decrement the reference count for this object. More...

GstDiscovererStreamInfo*	gobj ()
	Provides access to the underlying C instance. More...

const GstDiscovererStreamInfo*	gobj () const
	Provides access to the underlying C instance. More...

GstDiscovererStreamInfo*	gobj_copy () const
	Provides access to the underlying C instance. The caller is responsible for unrefing it. Use when directly setting fields in structs. More...

	DiscovererStreamInfo ()=delete

	DiscovererStreamInfo (const DiscovererStreamInfo&)=delete

DiscovererStreamInfo&	operator= (const DiscovererStreamInfo&)=delete

Glib::RefPtr< Gst::Caps >	get_caps ()

Glib::RefPtr< const Gst::Caps >	get_caps () const

Structure	get_misc () const
	Deprecated: This functions is deprecated since version 1.4, use #gst_discoverer_info_get_missing_elements_installer_details. More...

Glib::RefPtr< Gst::DiscovererStreamInfo >	get_next ()

Glib::RefPtr< const Gst::DiscovererStreamInfo >	get_next () const

Glib::RefPtr< Gst::DiscovererStreamInfo >	get_previous ()

Glib::RefPtr< Gst::DiscovererStreamInfo >	get_previous () const

Gst::TagList	get_tags () const

Glib::ustring	get_stream_type_nick () const

Glib::ustring	get_stream_id () const

Glib::RefPtr< const Gst::Toc >	get_toc () const

Public Member Functions inherited from Gst::MiniObject
void	reference () const
	Increment the reference count for this object. More...

void	unreference () const
	Decrement the reference count for this object. More...

GstMiniObject*	gobj ()
	Provides access to the underlying C instance. More...

const GstMiniObject*	gobj () const
	Provides access to the underlying C instance. More...

GstMiniObject*	gobj_copy () const
	Provides access to the underlying C instance. The caller is responsible for unrefing it. Use when directly setting fields in structs. More...

	MiniObject ()=delete

	MiniObject (const MiniObject&)=delete

MiniObject&	operator= (const MiniObject&)=delete

	~MiniObject ()

guint	get_flags () const

void	set_flags (const guint& value)

gint	get_refcount () const

gint	get_lockstate () const

bool	lock (LockFlags flags)
	Lock the mini-object with the specified access mode in flags. More...

void	unlock (LockFlags flags)
	Unlock the mini-object with the specified access mode in flags. More...

bool	is_writable () const
	If mini_object has the LOCKABLE flag set, check if the current EXCLUSIVE lock on object is the only one, this means that changes to the object will not be visible to any other object. More...

Glib::RefPtr< MiniObject >	create_writable ()
	Checks if a mini-object is writable. More...

void	set_qdata (GQuark quark, QuarkData* data)
	This sets an opaque, named pointer on a miniobject. More...

QuarkData*	get_qdata (GQuark quark) const
	This function gets back user data pointers stored via set_qdata(). More...

QuarkData*	steal_qdata (GQuark quark)
	This function gets back user data pointers stored via set_qdata() and removes the data from object without invoking its destroy() function (if any was set). More...

void	add_finalize_notifier (const SlotFinalizer& slot)
	Adds notifier when mini object is finalized. More...

void	remove_finalize_notifier ()
	Remove finalize notifier. More...

Protected Member Functions
void	operator delete (void*, std::size_t)

Protected Member Functions inherited from Gst::MiniObject
void	operator delete (void*, std::size_t)

Related Functions
(Note that these are not member functions.)
Glib::RefPtr< Gst::DiscovererStreamInfo >	wrap (GstDiscovererStreamInfo* object, bool take_copy=false)
	A Glib::wrap() method for this object. More...

Related Functions inherited from Gst::MiniObject
Glib::RefPtr< Gst::MiniObject >	wrap (GstMiniObject* object, bool take_copy=false)
	A Glib::wrap() method for this object. More...

Additional Inherited Members
Public Types inherited from Gst::MiniObject
typedef sigc::slot< void >	SlotFinalizer

Detailed Description

DiscovererStreamInfo - Base class for information concerning a media stream.

Depending on the stream type, one can find more media-specific information in Gst::DiscovererAudioInfo, Gst::DiscovererVideoInfo, and Gst::DiscovererContainerInfo.

The Gst::DiscovererStreamInfo represents the topology of the stream. Siblings can be iterated over with get_next() and get_previous(). Children (sub-streams) of a stream can be accessed using the Gst::DiscovererContainerInfo API.

As a simple example, if you run Gst::Discoverer on an AVI file with one audio and one video stream, you will get a Gst::DiscovererContainerInfo corresponding to the AVI container, which in turn will have a Gst::DiscovererAudioInfo sub-stream and a Gst::DiscovererVideoInfo sub-stream for the audio and video streams respectively.

Constructor & Destructor Documentation

◆ DiscovererStreamInfo() [1/2]

Gst::DiscovererStreamInfo::DiscovererStreamInfo ( )

delete

◆ DiscovererStreamInfo() [2/2]

Gst::DiscovererStreamInfo::DiscovererStreamInfo ( const DiscovererStreamInfo& )

delete

Member Function Documentation

◆ get_caps() [1/2]

Glib::RefPtr<Gst::Caps> Gst::DiscovererStreamInfo::get_caps ( )

Returns: The Gst::Caps of the stream. Unref with #gst_caps_unref after usage.

◆ get_caps() [2/2]

Glib::RefPtr<const Gst::Caps> Gst::DiscovererStreamInfo::get_caps ( ) const

Returns: The Gst::Caps of the stream. Unref with #gst_caps_unref after usage.

◆ get_misc()

Structure Gst::DiscovererStreamInfo::get_misc ( ) const

Deprecated: This functions is deprecated since version 1.4, use #gst_discoverer_info_get_missing_elements_installer_details.

Returns: Additional information regarding the stream (for example codec version, profile, etc..). If you wish to use the Gst::Structure after the life-time of info you will need to copy it.

◆ get_next() [1/2]

Glib::RefPtr<Gst::DiscovererStreamInfo> Gst::DiscovererStreamInfo::get_next ( )

Returns: The next Gst::DiscovererStreamInfo in a chain. nullptr for final streams. Unref with #gst_discoverer_stream_info_unref after usage.

◆ get_next() [2/2]

Glib::RefPtr<const Gst::DiscovererStreamInfo> Gst::DiscovererStreamInfo::get_next ( ) const

Returns: The next Gst::DiscovererStreamInfo in a chain. nullptr for final streams. Unref with #gst_discoverer_stream_info_unref after usage.

◆ get_previous() [1/2]

Glib::RefPtr<Gst::DiscovererStreamInfo> Gst::DiscovererStreamInfo::get_previous ( )

Returns: The previous Gst::DiscovererStreamInfo in a chain. nullptr for starting points. Unref with #gst_discoverer_stream_info_unref after usage.

◆ get_previous() [2/2]

Glib::RefPtr<Gst::DiscovererStreamInfo> Gst::DiscovererStreamInfo::get_previous ( ) const

Returns: The previous Gst::DiscovererStreamInfo in a chain. nullptr for starting points. Unref with #gst_discoverer_stream_info_unref after usage.

◆ get_stream_id()

Glib::ustring Gst::DiscovererStreamInfo::get_stream_id ( ) const

Returns: The stream ID of this stream. If you wish to use the stream ID after the life-time of info you will need to copy it.

◆ get_stream_type_nick()

Glib::ustring Gst::DiscovererStreamInfo::get_stream_type_nick ( ) const

Returns: A human readable name for the stream type of the given info (ex : "audio", "container",...).

◆ get_tags()

Gst::TagList Gst::DiscovererStreamInfo::get_tags ( ) const

Returns: The tags contained in this stream. If you wish to use the tags after the life-time of info you will need to copy them.

◆ get_toc()

Glib::RefPtr<const Gst::Toc> Gst::DiscovererStreamInfo::get_toc ( ) const

Returns: The TOC contained in this stream. If you wish to use the TOC after the life-time of info you will need to copy it.

◆ gobj() [1/2]

GstDiscovererStreamInfo* Gst::DiscovererStreamInfo::gobj ( )

Provides access to the underlying C instance.

◆ gobj() [2/2]

const GstDiscovererStreamInfo* Gst::DiscovererStreamInfo::gobj ( ) const

Provides access to the underlying C instance.

◆ gobj_copy()

GstDiscovererStreamInfo* Gst::DiscovererStreamInfo::gobj_copy ( ) const

Provides access to the underlying C instance. The caller is responsible for unrefing it. Use when directly setting fields in structs.

◆ operator delete()

void Gst::DiscovererStreamInfo::operator delete	(	void *	,
		std::size_t
	)

protected

◆ operator=()

DiscovererStreamInfo& Gst::DiscovererStreamInfo::operator= ( const DiscovererStreamInfo& )

delete

◆ reference()

void Gst::DiscovererStreamInfo::reference ( ) const

Increment the reference count for this object.

You should never need to do this manually - use the object via a RefPtr instead.

◆ unreference()

void Gst::DiscovererStreamInfo::unreference ( ) const

Decrement the reference count for this object.

You should never need to do this manually - use the object via a RefPtr instead.

Friends And Related Function Documentation

◆ wrap()

Glib::RefPtr< Gst::DiscovererStreamInfo > wrap	(	GstDiscovererStreamInfo *	object,
		bool	take_copy = `false`
	)

Parameters

object	The C instance.
take_copy	False if the result should take ownership of the C instance. True if it should take a new copy or ref.

Returns: A C++ instance that wraps this C instance.
